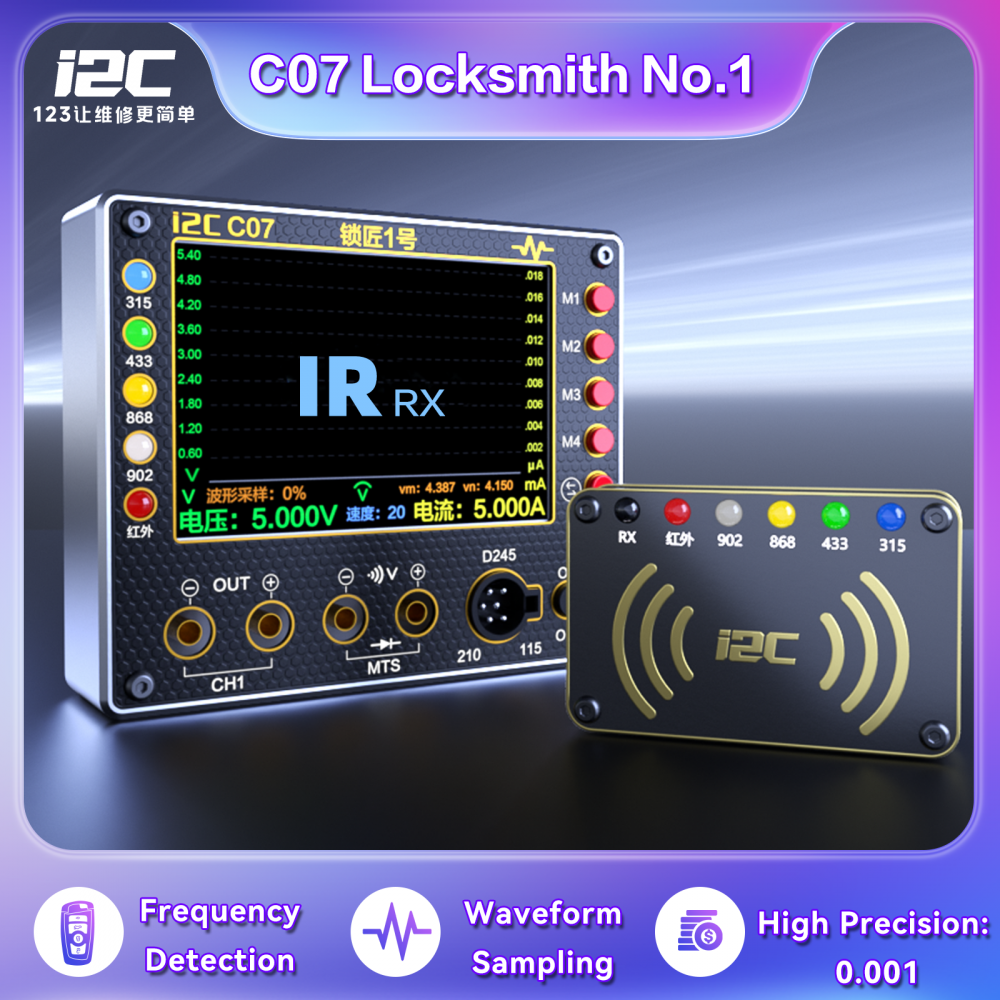

i2C C07 Locksmith No.1 Remote Control Frequency Tester Multimeter, Plug: EU Plug(Configuration 1)

Description

The i2C C07 Locksmith No.1 is a multifunction diagnostic instrument combining remote control frequency testing, power supply output, waveform measurement, and basic multimeter functions in a single tool. It’s widely used in automotive locksmithing (remote key repair/testing), electronics troubleshooting, and general measurement tasks.
Features:

Waveform Measurement/Remote control repair/Frequency test/Current testing/Diode measurement/Soldering iron function
Output voltage: 3V/6V/9V/12V; Output current: 0.1μA~0.3A; Designed for remote maintenance, low voltage and low current, with reverse connection protection, the device will not burn out even if connected in reverse
No need for complicated code matching, just one click and it will respond!
Can test infrared 433/315/868/902 frequency remote control, triggering the light is simple and clear
Frequency test mode: Can be used with C10/C09/C07 devices to trigger the device to automatically display the test frequency band, and the large font measurement results are clearer
Voltage/current/resistance/On/Off/diode/capacitance/frequency can be solved by one machine, covering all maintenance and inspection
Ultra-fast diode measurements, high-speed scanning, accurate measurement, buzzer mode, diode mode, 2 in 1, extremely simple operation
DC voltage measurement: Can measure 0-40V DC-DC voltage and has 20 sets of data recording function, considerate and more practical
One gear, two functions 0-50K resistor budget: The current resistance value can be estimated directly without changing gears; everything is designed in the future minimalist mode
PCIE function expansion: Built-in PCIE expansion slot design, optional
One machine supports three kinds of handles: T210, T245, T115, perfect for all welding industries
With the same working conditions as C10, micro-ampere acquisition accuracy 0.1μA-8A, wide current sampling 0- 40V, DC voltage sampling can be used for low power consumption testing, mobile phone repair, home appliance repair, 3C digital industry, connected to the regulated power supply, instantly turned into an oscilloscope, where voltage and current can be seen everywhere
Pointer Mode: It is highly intuitive, quick to respond, and has little interference. It can intuitively reflect the changing trend and size of the current, and is convenient for quickly judging the approximate range of the current.
Waveform Modev: It can accurately simulate various complex current or voltage change curves. Through the curve changes, the current waveform can be viewed intuitively, thereby improving the efficiency and accuracy of troubleshooting.
Digital display mode: Clear and easy to read. The large screen provides a clear and eye-catching digital display, and the voltage, current, and power results are clear at a glance

Specification:

Host adapter input voltage: AC 110~230V
Remote maintenance output voltage: 3V/6V/9V/12V
Remote maintenance output current: 0~300mA
Remote maintenance current accuracy: 0.1μA
Banana plug input voltage: DC 0~30V
Banana plug input detection current: 0~8A
Soldering station input voltage and current: DC 24V/5A
Product dimensions: 118.8*97*31.5mm
Screen size: 4.0-inch
Screen resolution: 320*480
Diode test: 0~2.8V
Resistor budgeting: 0~50KΩ
DC voltage measurement: 0~30V

Package includes:

1 x According to your choice
