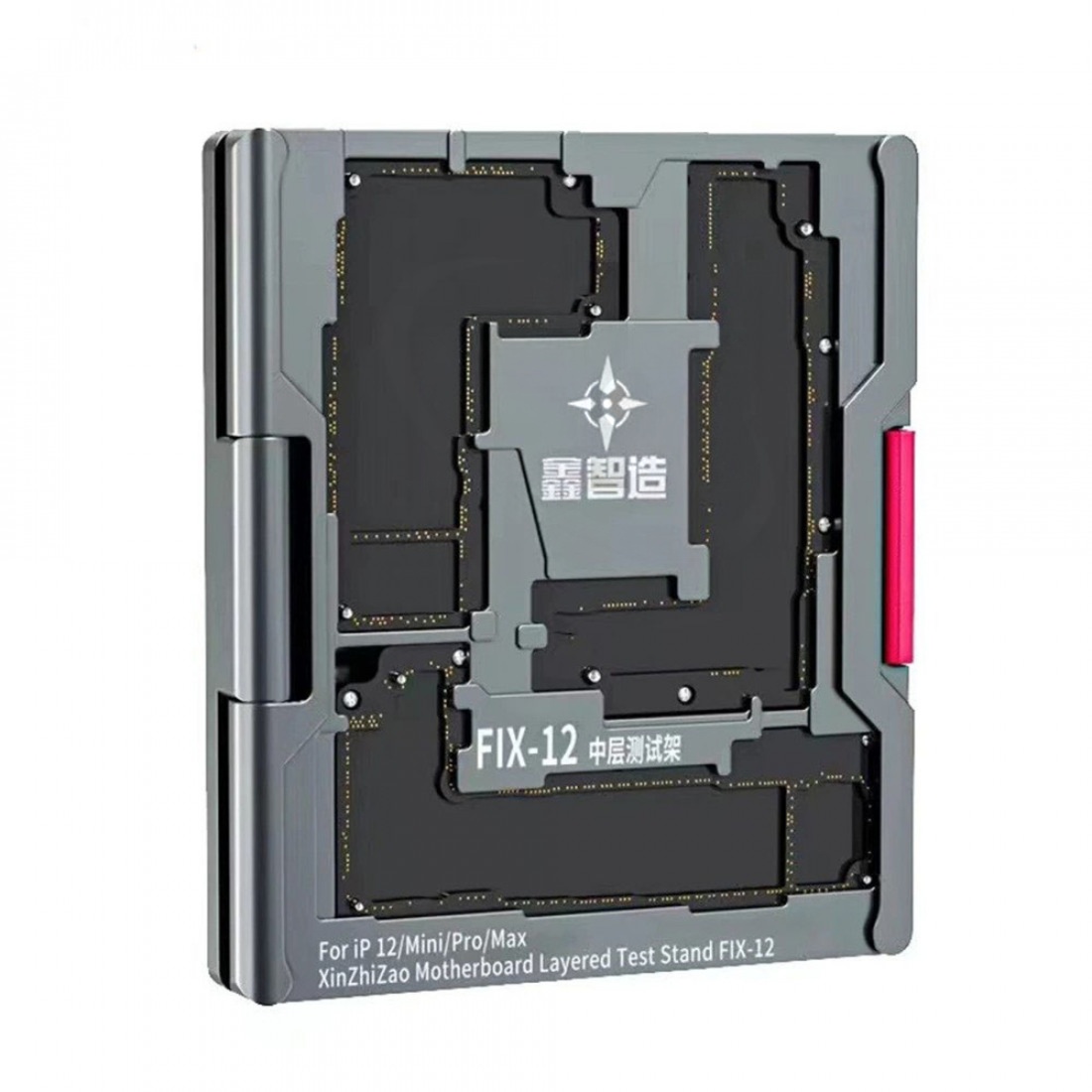

FIX 12 Motherboard Tester For iP 12 Pro Max 12mini Mainboard Middle Layer Repair PCB Welding Testing Platform|Phone Repair Tool SetS

Operational Process:

1, Prepare

Power On/Off Cable*1

Power Line*1

LCD Test Cable*1

Screen*1

Main Board*1

2, Decomposition iPhone x/xs/xsmax Middle Layer simply equipped the test fixture.

3, Install: Put in the lower main board, put on the pin board, put the top board in, and then cover the test rack.

4, The first way to connect the screen line,boot,power cord or battery test ink success or not. The second way is to connect the end plug on the base of the first method to implement the brush function.
