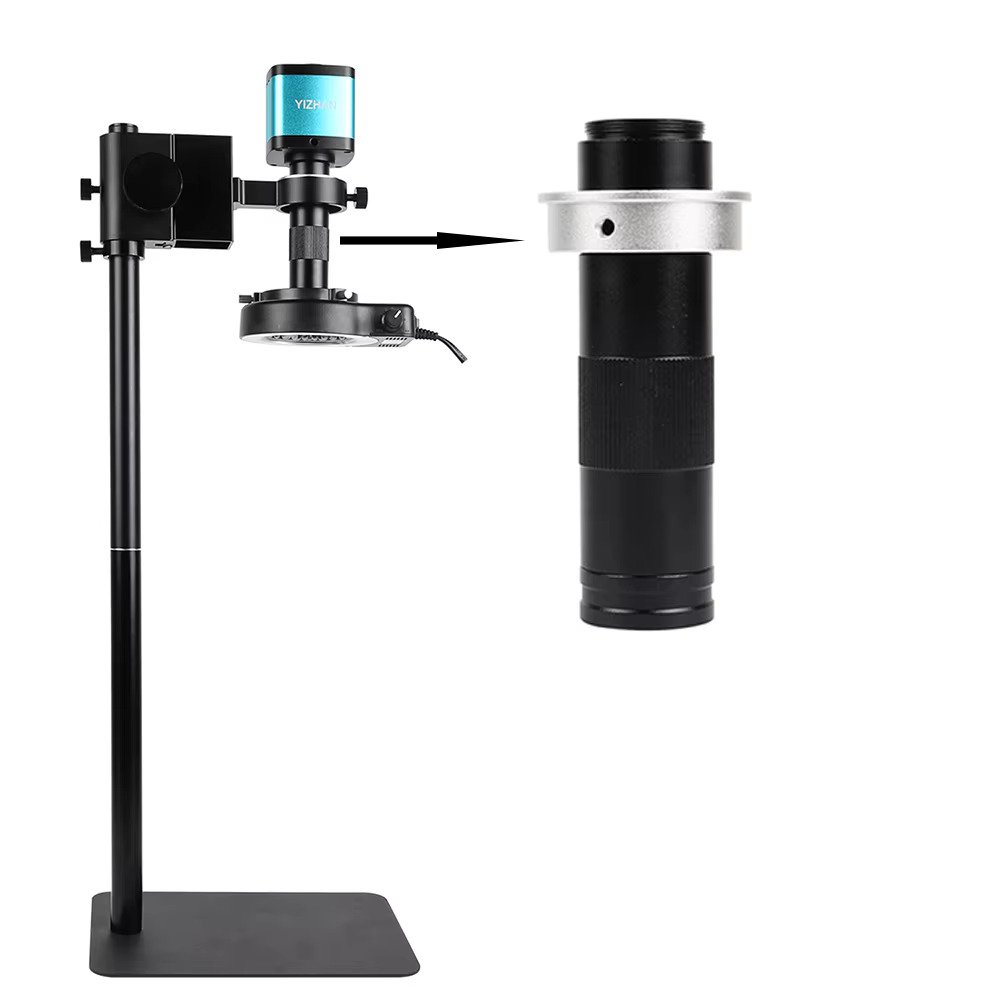

Camera lens 150X, C-mount Adjustable Magnification Zoom C Mount Lens Zoom Glass Lens 42mm for HDMI VGA USB Video Microscope Camera Monocular

Description

1X-130X Zoom C-mount Lens:

Working distance: 40mm-170mm

Proportional zoom: 1:17

Electrical magnification by 0.1 – 1.3X (approximately 1 – 130X on display)

Field of view of Max multiple: 8mm*4.5mm

Field of view of multiple minutes: 40mm * 33mm

Size: 115mm(L)*40mm(DIA)

Weight: 210g

1X-150X Zoom C-mount Lens:

Working distance: 50mm-1000mm

Relative zoom: 1:15

Electrical magnification by 0.15- 2X (approximately 1 – 150X on display)

Field of view of Max multiple: 4.2mm * 2.4mm

Field of view of multiple minutes: 130mm * 70mm

Size: 30mm (diameter) * 99mm (length)

Weight: 195g

1X-180X Zoom C-mount Lens:

Working distance: 100-150mm

Zoom ratio: 1:6.5

Electrical magnification by 0.7 – 4.5X (approximately 1 – 180X on display)

Field of view of Max multiple: 2.8mm * 1.5mm

Field of view of multiple minutes: 25mm * 14mm

Eyepiece lens: 0.5X

Size: 168mm(L) * 50mm(Diameter)

Weight: 570g

Packing list

1 * Lens
